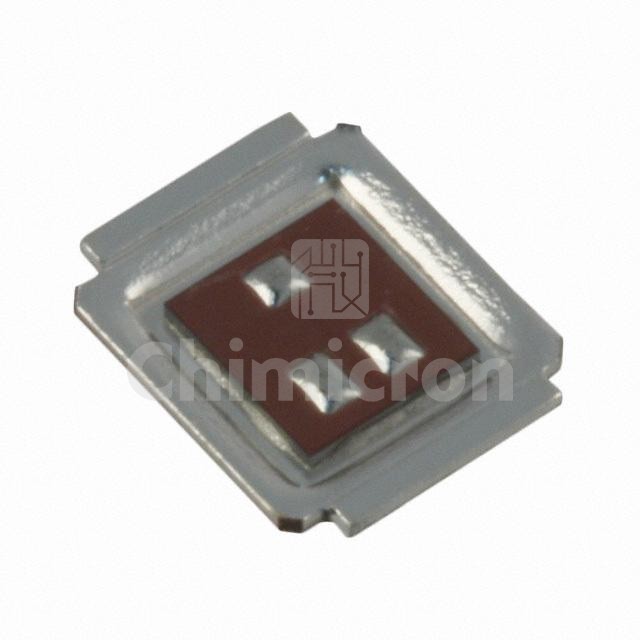

IRF6613TR1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 40V 23A DIRECTFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:430000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF6613TR1 IR (Infineon Technologies) at chimicron.com. We have 430000 pieces of IRF6613TR1 in stock available now. Submit an inquiry for IRF6613TR1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C23A (Ta), 150A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.4mOhm @ 23A, 10V
Vgs(th) (Max) @ Id2.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs63 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5950 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 89W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ MT
Package / CaseDirectFET™ Isometric MT
