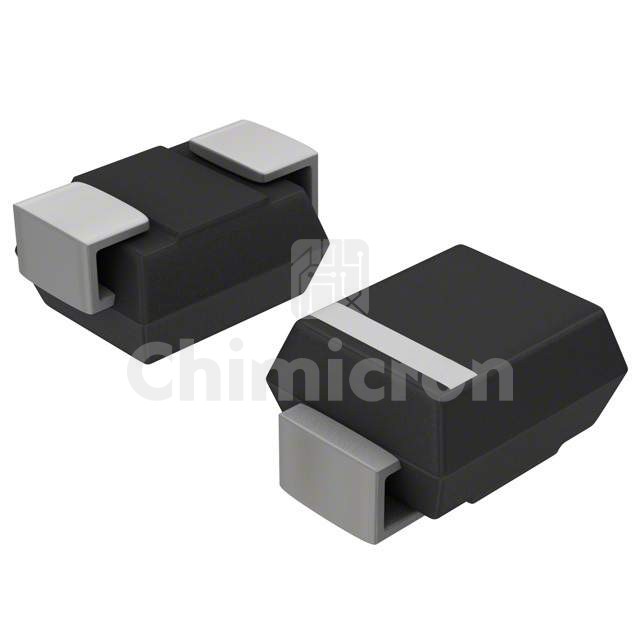

ER3D
ER3D

Manufacturer: SMC Diode Solutions

Description: SMT SUPER FAST RECTIFIER
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Single
Series: -
In Stock:300000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ER3D SMC Diode Solutions at chimicron.com. We have 300000 pieces of ER3D in stock available now. Submit an inquiry for ER3D or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)200 V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If950 mV @ 3 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)35 ns
Current - Reverse Leakage @ Vr5 µA @ 200 V
Capacitance @ Vr, F45pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageSMC (DO-214AB)
Operating Temperature - Junction-65°C ~ 150°C
