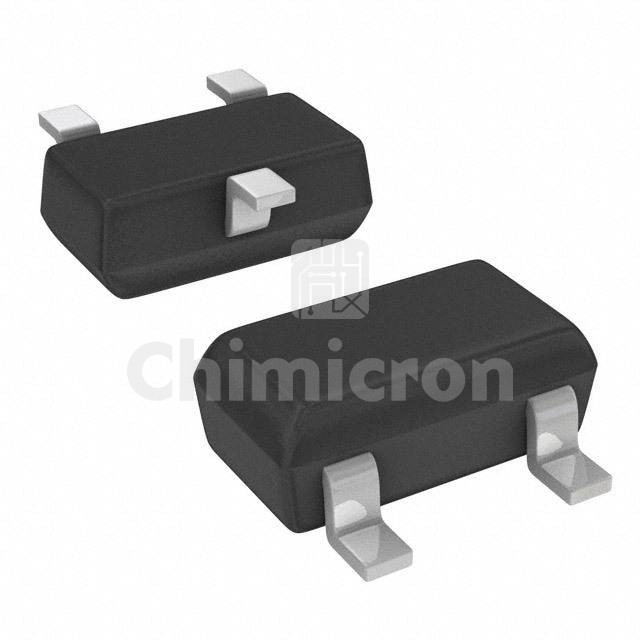

SBR05U20SN-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: DIODE ARRAY SBR 20V 250MA SC59-3
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Arrays
Series: SBR®
In Stock:900000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SBR05U20SN-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 900000 pieces of SBR05U20SN-7 in stock available now. Submit an inquiry for SBR05U20SN-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSBR®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeSuper Barrier
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io) (per Diode)250mA
Voltage - Forward (Vf) (Max) @ If560 mV @ 500 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr100 µA @ 20 V
Operating Temperature - Junction-65°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSC-59-3
