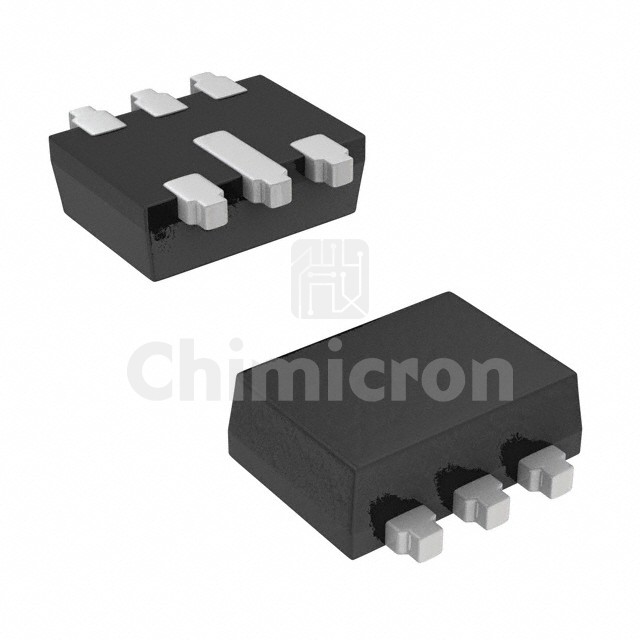

AO5804EL
AO5804EL

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET N-CH SC89-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:29991
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AO5804EL Alpha and Omega Semiconductor, Inc. at chimicron.com. We have 29991 pieces of AO5804EL in stock available now. Submit an inquiry for AO5804EL or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C500mA
Rds On (Max) @ Id, Vgs550mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds45pF @ 10V
Power - Max280mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSC-89-6
