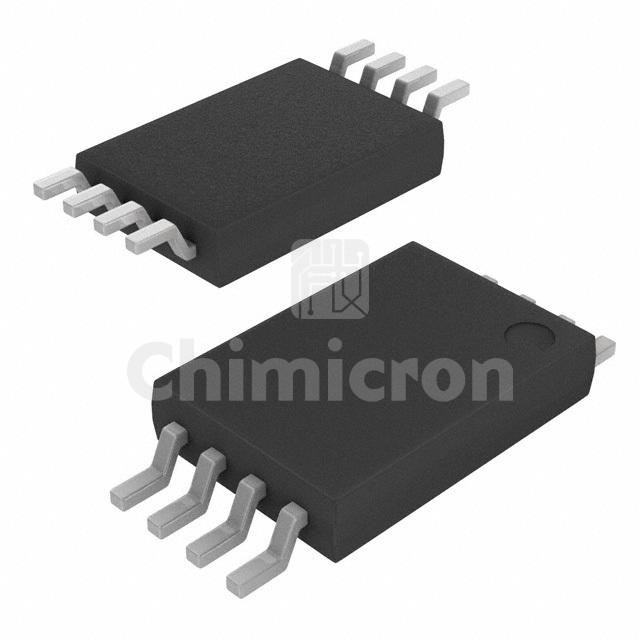

FDW2520C
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N/P-CH 20V 6A/4.4A 8TSSOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: PowerTrench®
In Stock:17000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDW2520C Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 17000 pieces of FDW2520C in stock available now. Submit an inquiry for FDW2520C or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C6A, 4.4A
Rds On (Max) @ Id, Vgs18mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1325pF @ 10V
Power - Max600mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package8-TSSOP
