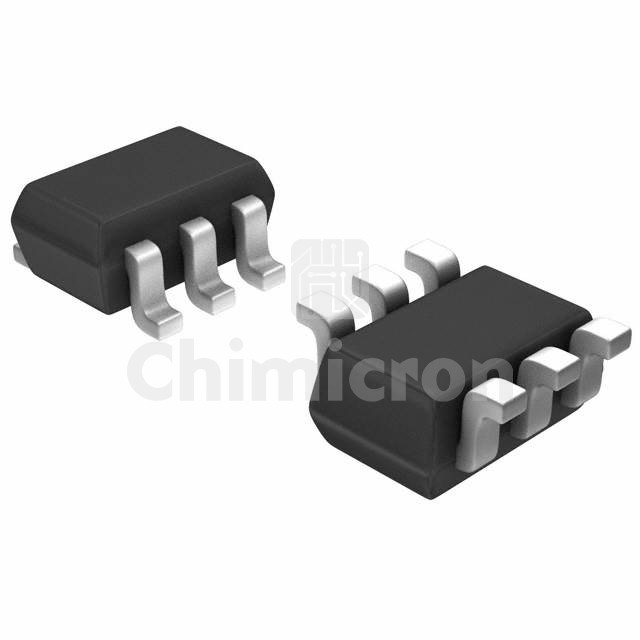

SI1563EDH-T1-E3
Manufacturer: Vishay / Siliconix
Description: MOSFET N/P-CH 20V 1.13A SC70-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: TrenchFET®
In Stock:1000000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SI1563EDH-T1-E3 Vishay / Siliconix at chimicron.com. We have 1000000 pieces of SI1563EDH-T1-E3 in stock available now. Submit an inquiry for SI1563EDH-T1-E3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C1.13A, 880mA
Rds On (Max) @ Id, Vgs280mOhm @ 1.13A, 4.5V
Vgs(th) (Max) @ Id1V @ 100µA
Gate Charge (Qg) (Max) @ Vgs1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds-
Power - Max570mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-70-6 (SOT-363)
