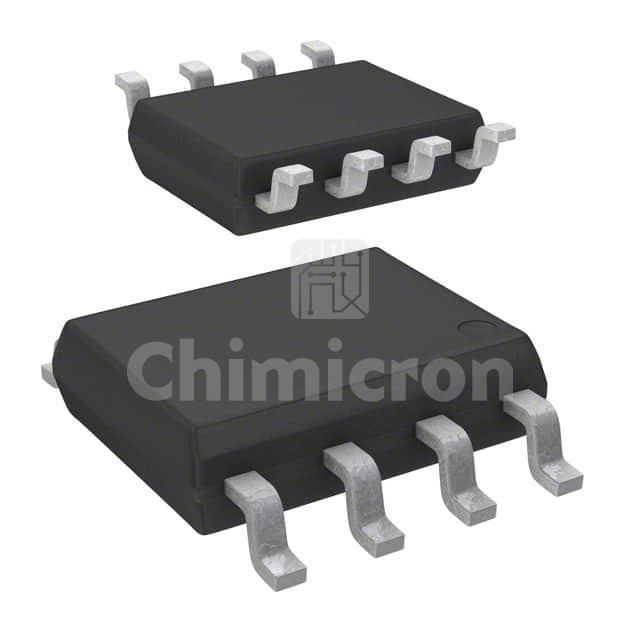

FDR8305N
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET 2N-CH 20V 4.5A SSOT-8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: PowerTrench®
In Stock:220000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDR8305N Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 220000 pieces of FDR8305N in stock available now. Submit an inquiry for FDR8305N or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)
Part StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C4.5A
Rds On (Max) @ Id, Vgs22mOhm @ 4.5A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs23nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1600pF @ 10V
Power - Max800mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-LSOP (0.130", 3.30mm Width)
Supplier Device PackageSuperSOT™-8
