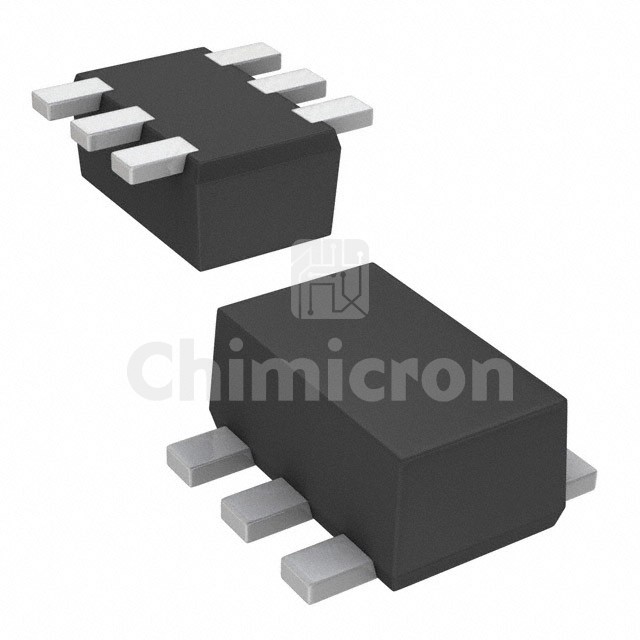

UP04314G0L
Manufacturer: Panasonic
Description: TRANS PREBIAS NPN/PNP SSMINI6
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Series: -
In Stock:7765
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UP04314G0L Panasonic at chimicron.com. We have 7765 pieces of UP04314G0L in stock available now. Submit an inquiry for UP04314G0L or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)10kOhms
Resistor - Emitter Base (R2)47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition150MHz, 80MHz
Power - Max125mW
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSSMini6-F2
