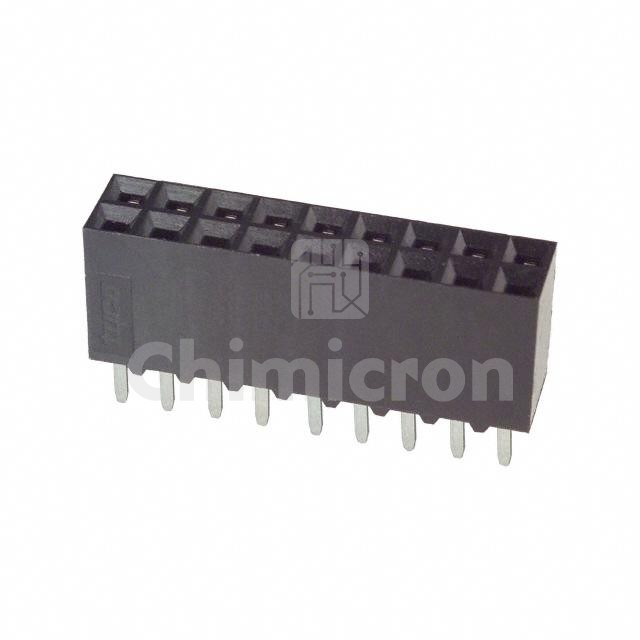

534206-9
Manufacturer: TE Connectivity AMP Connectors
Description: CONN RCPT 18POS 0.1 GOLD PCB
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: AMPMODU Mod II
In Stock:400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 534206-9 TE Connectivity AMP Connectors at chimicron.com. We have 400 pieces of 534206-9 in stock available now. Submit an inquiry for 534206-9 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAMPMODU Mod II
PackageTube
Part StatusDiscontinued at Digi-Key
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions18
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows2
Row Spacing - Mating0.100" (2.54mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Insulation ColorBlack
Insulation Height0.320" (8.13mm)
Contact Length - Post0.115" (2.92mm)
Operating Temperature-65°C ~ 125°C
Material Flammability Rating-
Contact Finish - PostTin-Lead
Mated Stacking Heights-
Ingress Protection-
Features-
Current Rating (Amps)2A
Voltage Rating-
