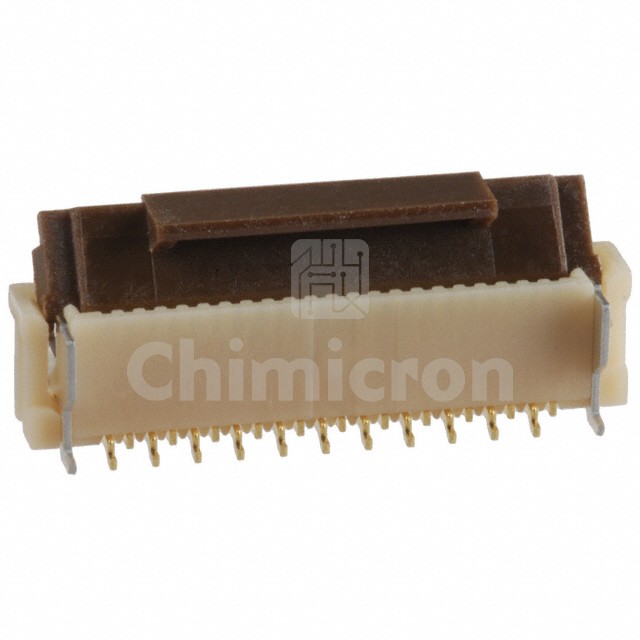

FH12-22S-1SV(55)
Manufacturer: Hirose
Description: CONN FFC FPC VERT 22POS 1MM SMD
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: FH12
In Stock:90000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FH12-22S-1SV(55) Hirose at chimicron.com. We have 90000 pieces of FH12-22S-1SV(55) in stock available now. Submit an inquiry for FH12-22S-1SV(55) or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFH12
PackageTape & Reel (TR)
Part StatusObsolete
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount
Connector/Contact TypeContacts, Vertical - 1 Sided
Number of Positions22
Pitch0.039" (1.00mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.142" (3.60mm)
Locking FeatureFlip Lock
Cable End TypeStraight
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialPolyamide (PA), Nylon
Actuator MaterialPolyphenylene Sulfide (PPS)
FeaturesZero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-40°C ~ 85°C
Material Flammability RatingUL94 V-0
