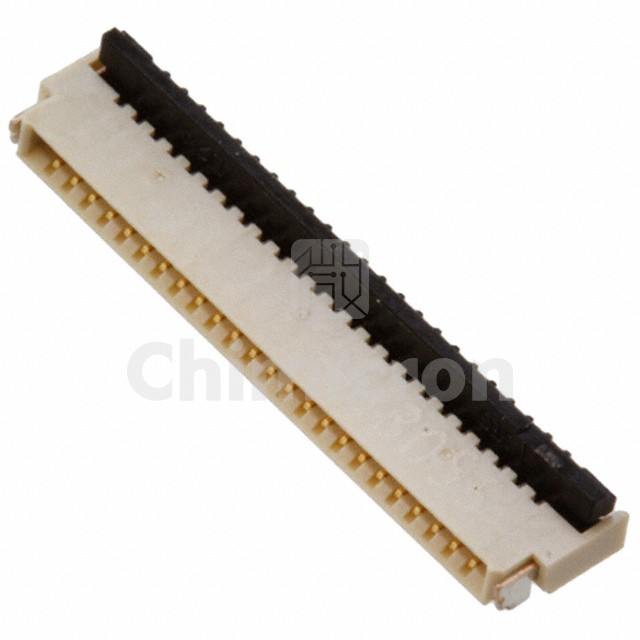

FH34S-24S-0.5SH(50)
FH34S-24S-0.5SH(50)

Manufacturer: Hirose

Description: CONN FFC TOP 24POS 0.50MM R/A
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: FH34S
In Stock:18000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FH34S-24S-0.5SH(50) Hirose at chimicron.com. We have 18000 pieces of FH34S-24S-0.5SH(50) in stock available now. Submit an inquiry for FH34S-24S-0.5SH(50) or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFH34S
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top
Number of Positions24
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.039" (1.00mm)
Locking FeatureRotary Lock, Backlock
Cable End TypeTapered
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP)
Actuator MaterialPolyamide (PA), Nylon
FeaturesZero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-55°C ~ 85°C
Material Flammability RatingUL94 V-0
