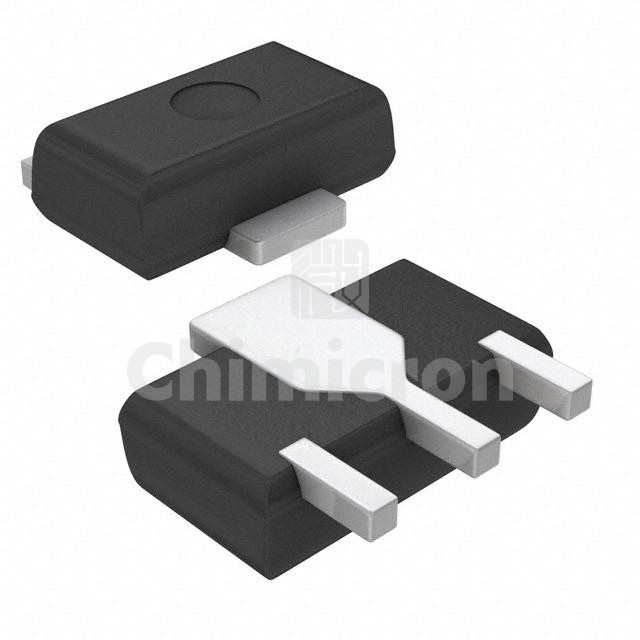

AN77L09M
Manufacturer: Panasonic
Description: IC REG LINEAR 9V 100MA 3HSIP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AN77L09M Panasonic at chimicron.com. We have 5000 pieces of AN77L09M in stock available now. Submit an inquiry for AN77L09M or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)19.86V
Voltage - Output (Min/Fixed)9V
Voltage - Output (Max)-
Voltage Dropout (Max)-
Current - Output100mA
Current - Quiescent (Iq)5 mA
Current - Supply (Max)-
PSRR62dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-30°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device Package3-HSIP
