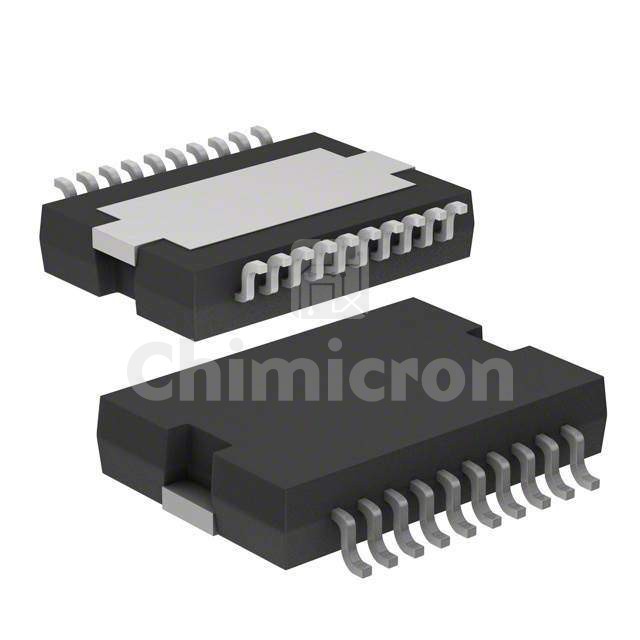

L4947PD
Manufacturer: STMicroelectronics
Description: IC REG LINEAR 5V 500MA POWERSO20
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:60000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L4947PD STMicroelectronics at chimicron.com. We have 60000 pieces of L4947PD in stock available now. Submit an inquiry for L4947PD or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.75V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)13 mA
Current - Supply (Max)180 mA
PSRR60dB (120Hz)
Control FeaturesReset
Protection FeaturesOver Temperature, Reverse Polarity, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device PackagePowerSO-20
