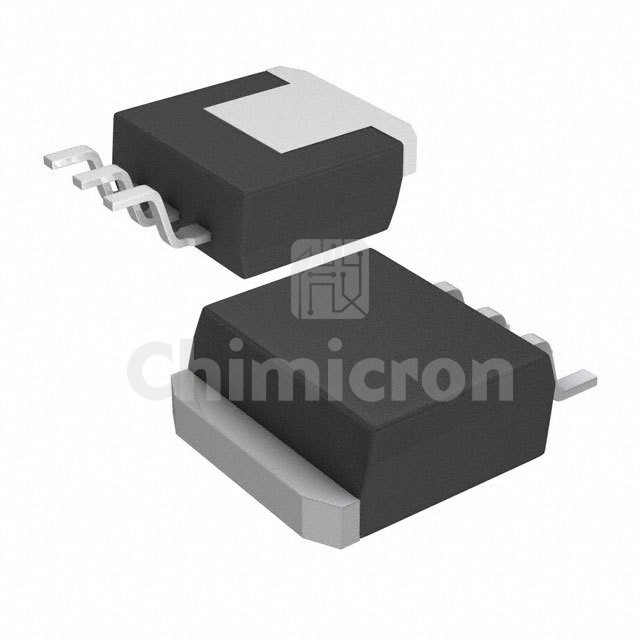

LM2940CSX-15
Manufacturer: Texas
Description: IC REG LIN 15V 1A DDPAK/TO263-3
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM2940CSX-15 Texas at chimicron.com. We have 5000 pieces of LM2940CSX-15 in stock available now. Submit an inquiry for LM2940CSX-15 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)15V
Voltage - Output (Max)-
Voltage Dropout (Max)0.8V @ 1A
Current - Output1A
Current - Quiescent (Iq)10 mA
Current - Supply (Max)15 mA
PSRR66dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature0°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device PackageDDPAK/TO-263-3
