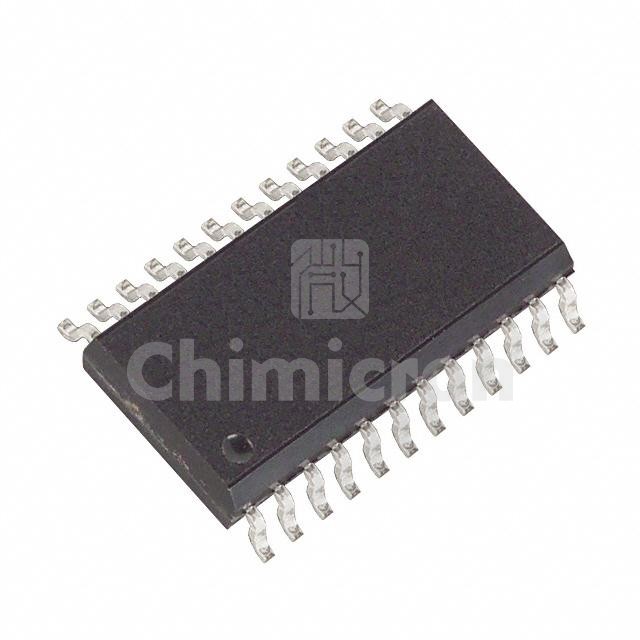

MAX526CCWG
Manufacturer: Maxim Integrated
Description: IC DAC 12BIT V-OUT 24SOIC
Category : Integrated Circuits
Family: Data Acquisition - Digital to Analog Converters (DAC)
Series: -
In Stock:7800
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX526CCWG Maxim Integrated at chimicron.com. We have 7800 pieces of MAX526CCWG in stock available now. Submit an inquiry for MAX526CCWG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Number of Bits12
Number of D/A Converters4
Settling Time3µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog10.8V ~ 16.5V, -5V
Voltage - Supply, Digital-
INL/DNL (LSB)±0.15, ±1 (Max)
ArchitectureR-2R
Operating Temperature0°C ~ 70°C
Package / Case24-SOIC (0.295", 7.50mm Width)
Supplier Device Package24-SOIC
Mounting TypeSurface Mount
