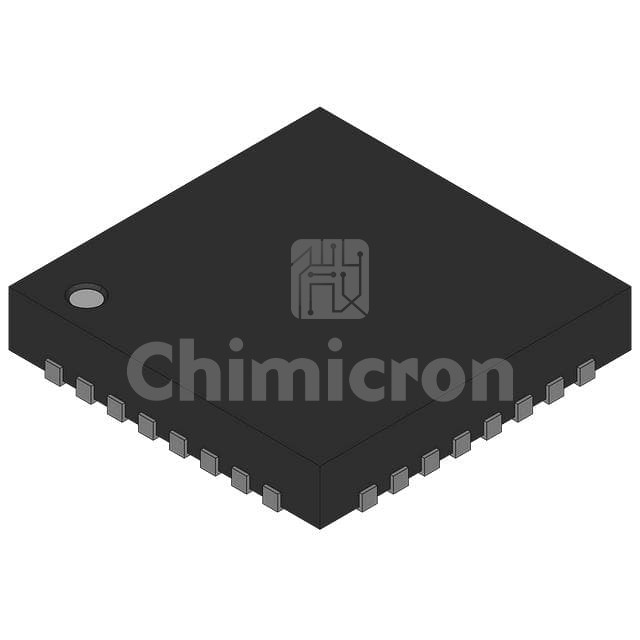

LTC3780EUH
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC POWER MANAGEMENT
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:107100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LTC3780EUH Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 107100 pieces of LTC3780EUH in stock available now. Submit an inquiry for LTC3780EUH or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyBuck-Boost
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)4V ~ 30V
Frequency - Switching200kHz ~ 400kHz
Duty Cycle (Max)99%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Power Good, Soft Start
Operating Temperature-40°C ~ 85°C (TJ)
Mounting TypeSurface Mount
Package / Case32-WFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
