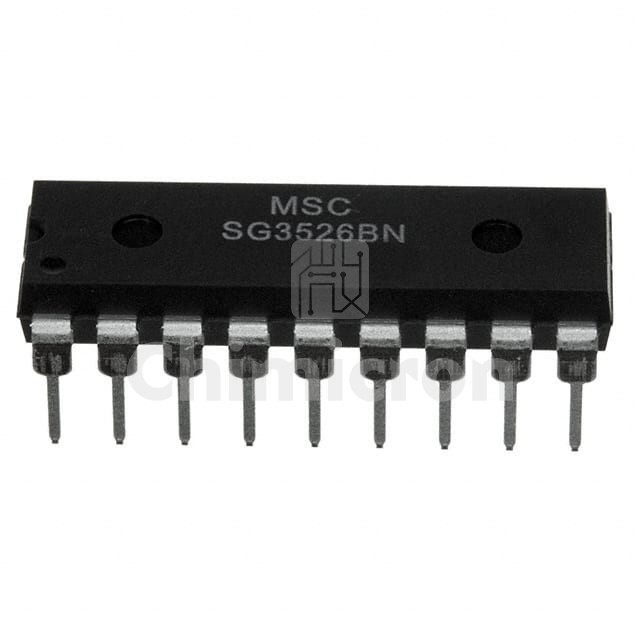

SG3526BN
Manufacturer: Roving Networks / Microchip Technology
Description: IC REG CTRLR BUCK/FLYBACK 18DIP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:1040000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SG3526BN Roving Networks / Microchip Technology at chimicron.com. We have 1040000 pieces of SG3526BN in stock available now. Submit an inquiry for SG3526BN or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusDiscontinued at Digi-Key
Output TypeTransistor Driver
FunctionStep-Down, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBuck, Flyback
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)8V ~ 35V
Frequency - Switching1Hz ~ 500kHz
Duty Cycle (Max)49%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesDead Time Control, Enable, Frequency Control, Reset, Soft Start
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Package / Case18-DIP (0.300", 7.62mm)
Supplier Device Package18-PDIP
