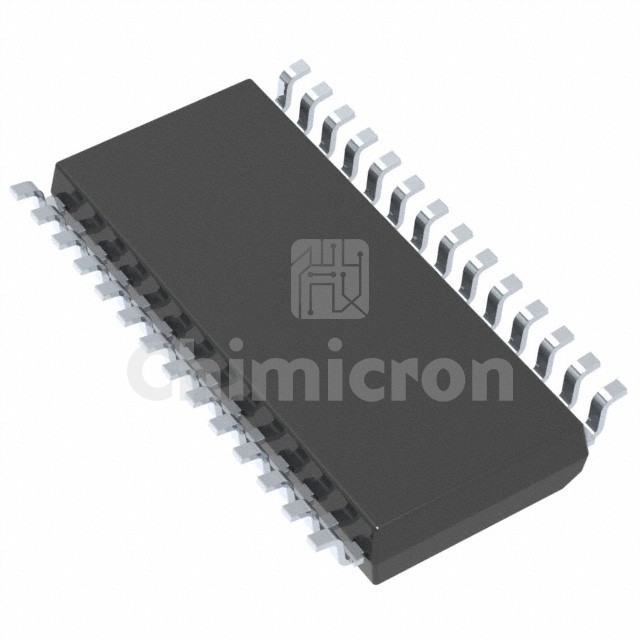

VNQ810M
Manufacturer: STMicroelectronics
Description: IC PWR DRIVER N-CHANNEL 1:1 28SO
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VNQ810M STMicroelectronics at chimicron.com. We have 500 pieces of VNQ810M in stock available now. Submit an inquiry for VNQ810M or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch TypeGeneral Purpose
Number of Outputs4
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load5.5V ~ 36V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)700mA
Rds On (Typ)150mOhm (Max)
Input TypeNon-Inverting
FeaturesAuto Restart, Status Flag
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package28-SO
Package / Case28-SOIC (0.295", 7.50mm Width)
