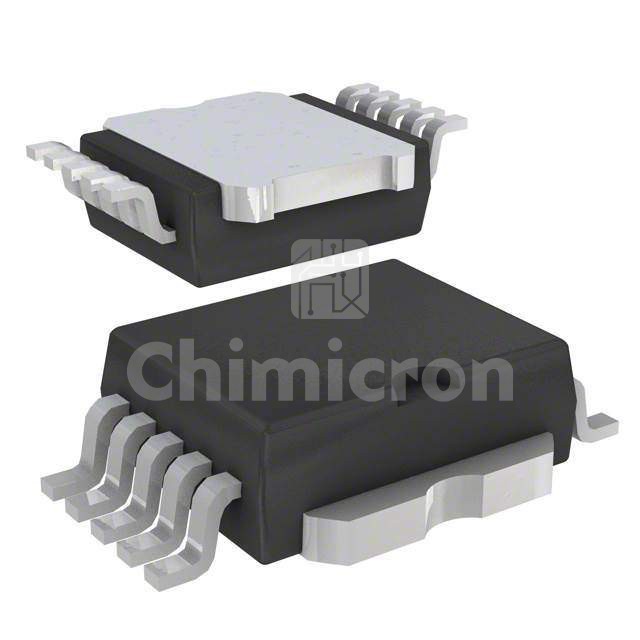

VNQ690SP
Manufacturer: STMicroelectronics
Description: IC PWR DRIVER N-CHAN 1:1 PWRSO10
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VNQ690SP STMicroelectronics at chimicron.com. We have 100000 pieces of VNQ690SP in stock available now. Submit an inquiry for VNQ690SP or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch TypeGeneral Purpose
Number of Outputs4
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load6V ~ 36V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)10A
Rds On (Typ)90mOhm (Max)
Input TypeNon-Inverting
FeaturesStatus Flag
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package10-PowerSO
Package / CasePowerSO-10 Exposed Bottom Pad
