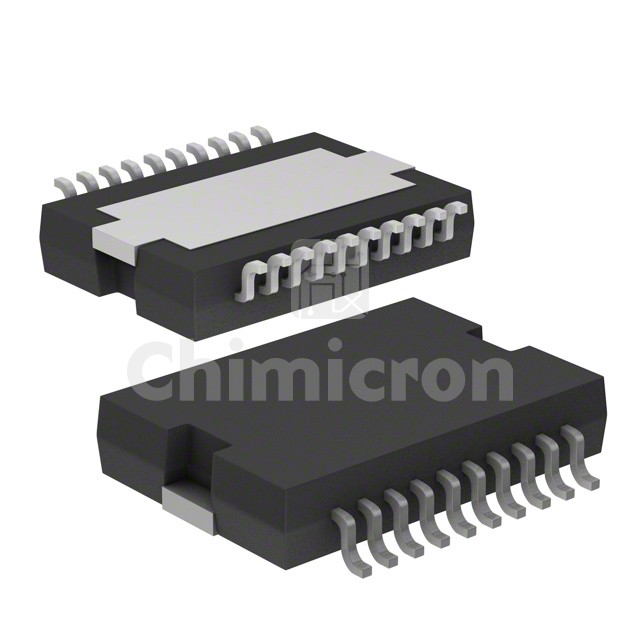

BTS840S2
Manufacturer: IR (Infineon Technologies)
Description: IC PWR SWITCH N-CHAN 1:1 DSO-20
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: PROFET®
In Stock:81600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BTS840S2 IR (Infineon Technologies) at chimicron.com. We have 81600 pieces of BTS840S2 in stock available now. Submit an inquiry for BTS840S2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPROFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Switch TypeGeneral Purpose
Number of Outputs2
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load5V ~ 34V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)11A
Rds On (Typ)27mOhm
Input TypeNon-Inverting
FeaturesStatus Flag
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-DSO-20-65
Package / Case20-PowerSOIC (0.433", 11.00mm Width)
