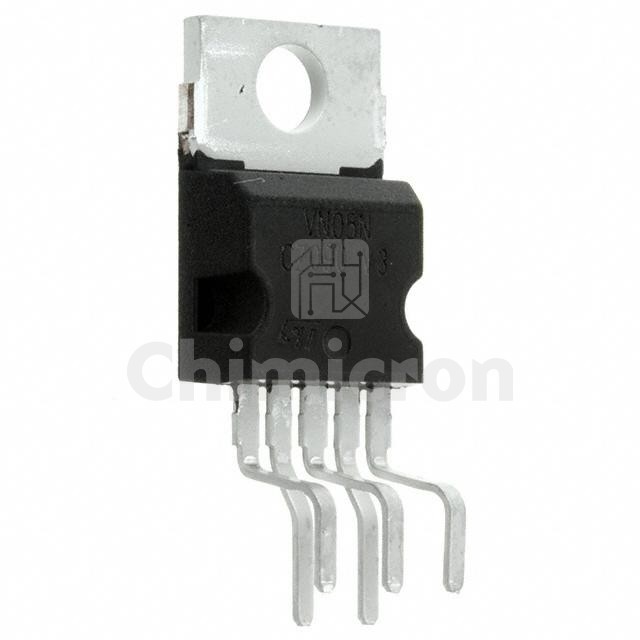

VN05N
Manufacturer: STMicroelectronics
Description: IC PWR DRVR N-CH 1:1 5PENTAWATT
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VN05N STMicroelectronics at chimicron.com. We have 10000 pieces of VN05N in stock available now. Submit an inquiry for VN05N or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load7V ~ 26V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)13A
Rds On (Typ)180mOhm (Max)
Input TypeNon-Inverting
FeaturesStatus Flag
Fault ProtectionOpen Load Detect, Over Temperature
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device Package5-PENTAWATT
Package / CasePentawatt-5 (Vertical, Bent and Staggered Leads)
