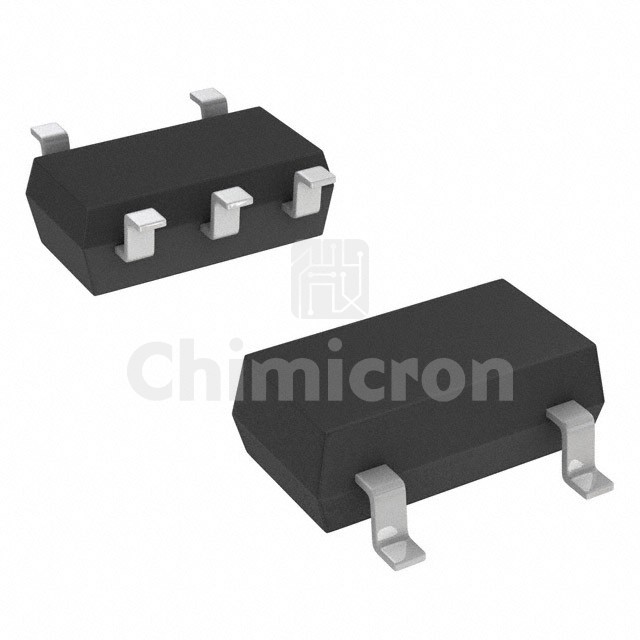

RT9715EGB
Manufacturer: Richtek
Description: IC PWR SWITCH N-CHAN 1:1 SOT23-5
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:1500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the RT9715EGB Richtek at chimicron.com. We have 1500000 pieces of RT9715EGB in stock available now. Submit an inquiry for RT9715EGB or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Switch TypeUSB Switch
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)1.1A
Rds On (Typ)90mOhm
Input TypeNon-Inverting
FeaturesLoad Discharge, Status Flag
Fault ProtectionCurrent Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature-40°C ~ 100°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-5
Package / CaseSC-74A, SOT-753
