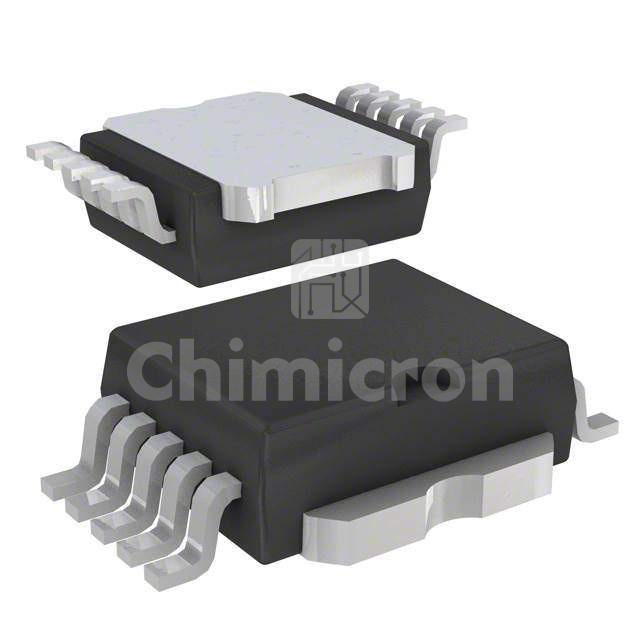

VN380SP13TR
Manufacturer: STMicroelectronics
Description: IC PWR DRVR BIPOLAR 2:1 PWRSO10
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: VIPower™
In Stock:6860000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VN380SP13TR STMicroelectronics at chimicron.com. We have 6860000 pieces of VN380SP13TR in stock available now. Submit an inquiry for VN380SP13TR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesVIPower™
PackageTape & Reel (TR)
Part StatusObsolete
Switch TypeRelay, Solenoid Driver
Number of Outputs1
Ratio - Input:Output2:1
Output ConfigurationHigh Side
Output TypeBipolar
InterfaceOn/Off
Voltage - Load6V ~ 24V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)5A
Rds On (Typ)110mOhm
Input Type-
FeaturesStatus Flag
Fault ProtectionOpen Load Detect, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package10-PowerSO
Package / CasePowerSO-10 Exposed Bottom Pad
