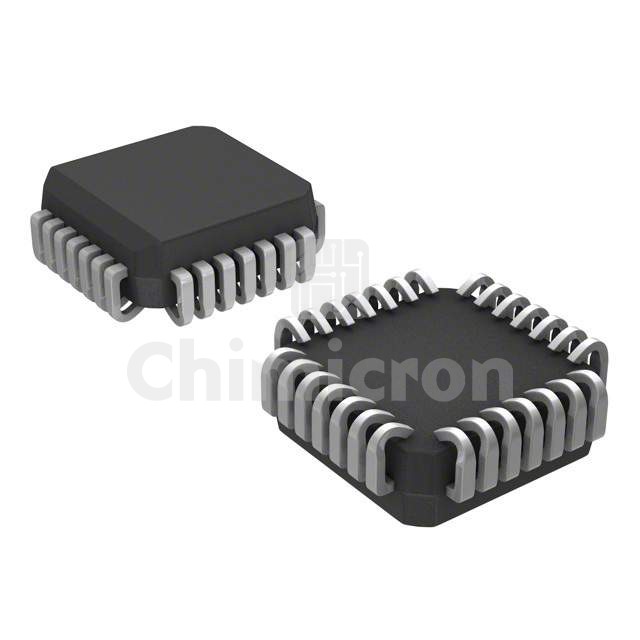

UDN2559EB
Manufacturer: Allegro MicroSystems
Description: IC PWR DRIVER BIPOLAR 1:1 28PLCC
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:150000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UDN2559EB Allegro MicroSystems at chimicron.com. We have 150000 pieces of UDN2559EB in stock available now. Submit an inquiry for UDN2559EB or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch TypeGeneral Purpose
Number of Outputs4
Ratio - Input:Output1:1
Output ConfigurationLow Side
Output TypeBipolar
InterfaceOn/Off
Voltage - Load60V (Max)
Voltage - Supply (Vcc/Vdd)4.75V ~ 5.25V
Current - Output (Max)700mA
Rds On (Typ)-
Input TypeNon-Inverting
Features-
Fault ProtectionCurrent Limiting (Fixed), Over Temperature
Operating Temperature-20°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device Package28-PLCC (11.51x11.51)
Package / Case28-LCC (J-Lead)
