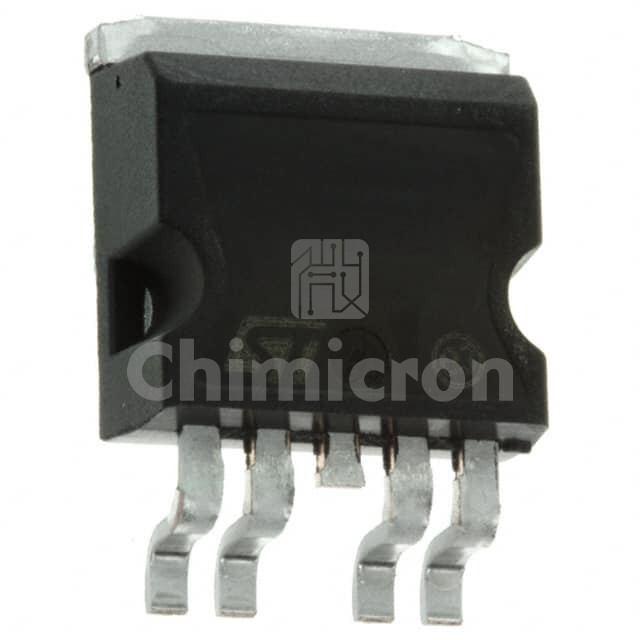

VN820-B513TR
Manufacturer: STMicroelectronics
Description: IC PWR DRIVER N-CHAN 1:1 P2PAK
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:20500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VN820-B513TR STMicroelectronics at chimicron.com. We have 20500 pieces of VN820-B513TR in stock available now. Submit an inquiry for VN820-B513TR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load5.5V ~ 36V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)9A
Rds On (Typ)40mOhm (Max)
Input TypeNon-Inverting
FeaturesAuto Restart, Status Flag
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageP2PAK
Package / CaseP²PAK (4 Leads + Tab)
