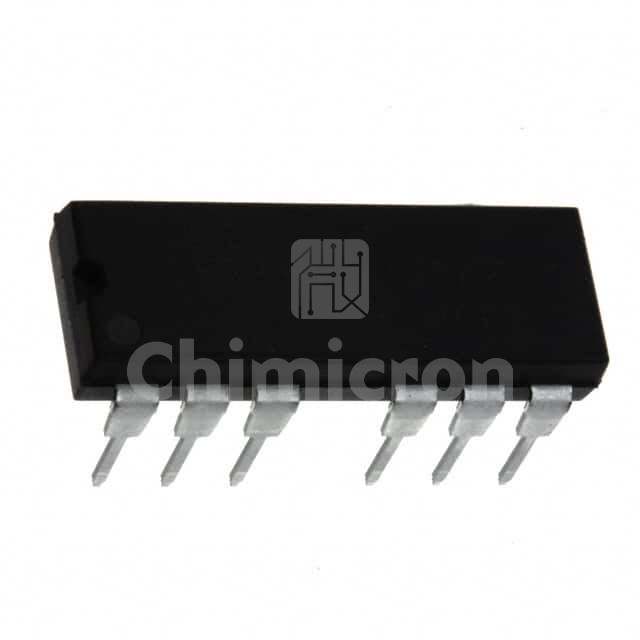

IR2113-1
Manufacturer: IR (Infineon Technologies)
Description: IC GATE DRVR HALF-BRIDGE 14DIP
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IR2113-1 IR (Infineon Technologies) at chimicron.com. We have 5000 pieces of IR2113-1 in stock available now. Submit an inquiry for IR2113-1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply3.3V ~ 20V
Logic Voltage - VIL, VIH6V, 9.5V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)25ns, 17ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm), 13 Leads
Supplier Device Package14-PDIP
