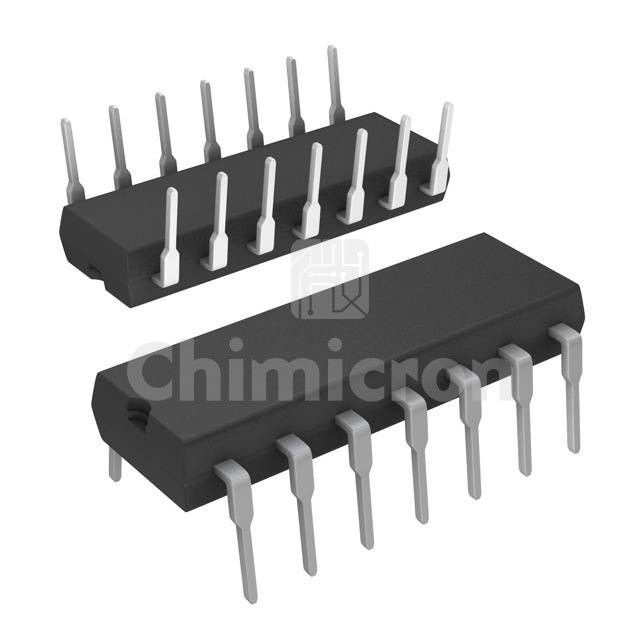

L6386E
Manufacturer: STMicroelectronics
Description: IC GATE DRVR HALF-BRIDGE 14DIP
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:3000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L6386E STMicroelectronics at chimicron.com. We have 3000 pieces of L6386E in stock available now. Submit an inquiry for L6386E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply17V (Max)
Logic Voltage - VIL, VIH1.5V, 3.6V
Current - Peak Output (Source, Sink)400mA, 650mA
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)50ns, 30ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device Package14-DIP
