LM5104SDX
Manufacturer: Texas
Description: IC GATE DRVR HALF-BRIDGE 10WSON
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:20000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5104SDX Texas at chimicron.com. We have 20000 pieces of LM5104SDX in stock available now. Submit an inquiry for LM5104SDX or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1.6A, 1.6A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)600ns, 600ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount

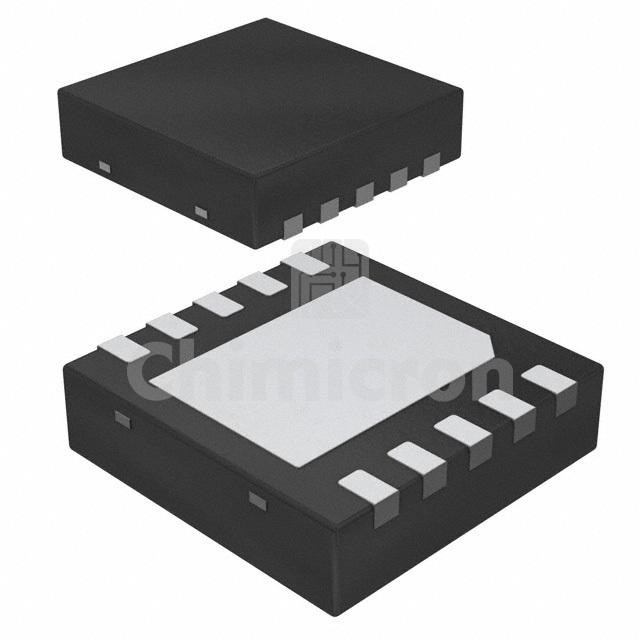

Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
