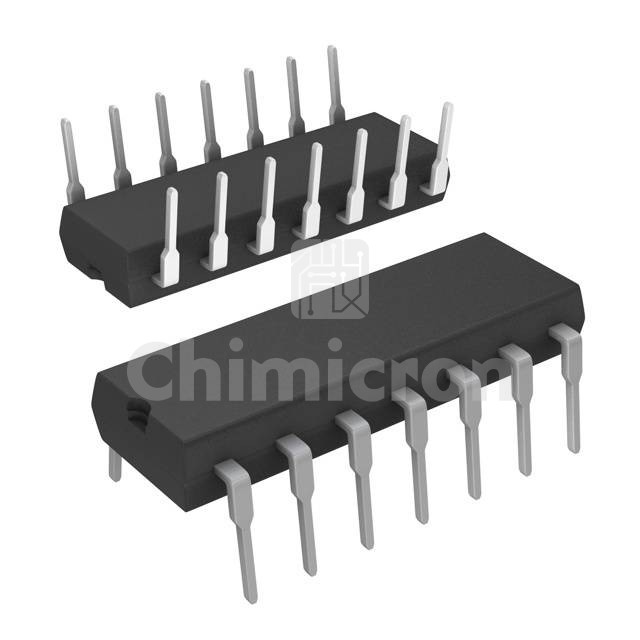

IR2213
Manufacturer: IR (Infineon Technologies)
Description: IC GATE DRVR HALF-BRIDGE 14DIP
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IR2213 IR (Infineon Technologies) at chimicron.com. We have 100000 pieces of IR2213 in stock available now. Submit an inquiry for IR2213 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply12V ~ 20V
Logic Voltage - VIL, VIH6V, 9.5V
Current - Peak Output (Source, Sink)2A, 2.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)1200 V
Rise / Fall Time (Typ)25ns, 17ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device Package14-DIP
