LM5105SD
Manufacturer: Texas
Description: IC GATE DRVR HALF-BRIDGE 10WSON
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5105SD Texas at chimicron.com. We have 5000 pieces of LM5105SD in stock available now. Submit an inquiry for LM5105SD or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1.8A, 1.8A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)15ns, 15ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount

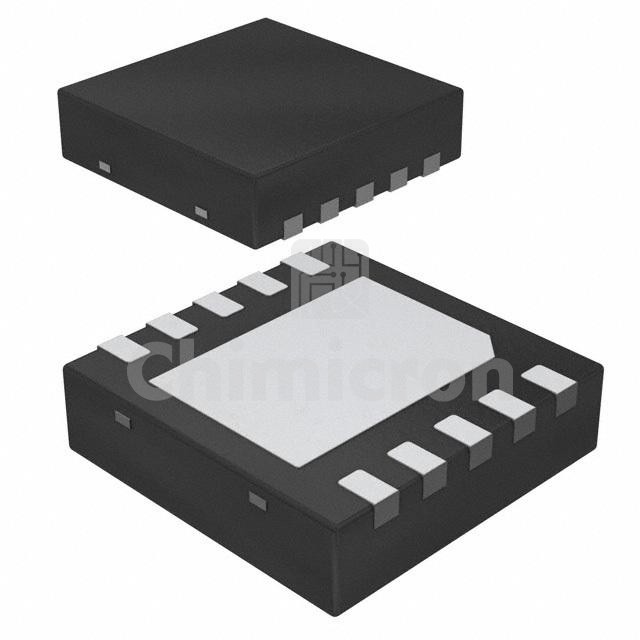

Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
