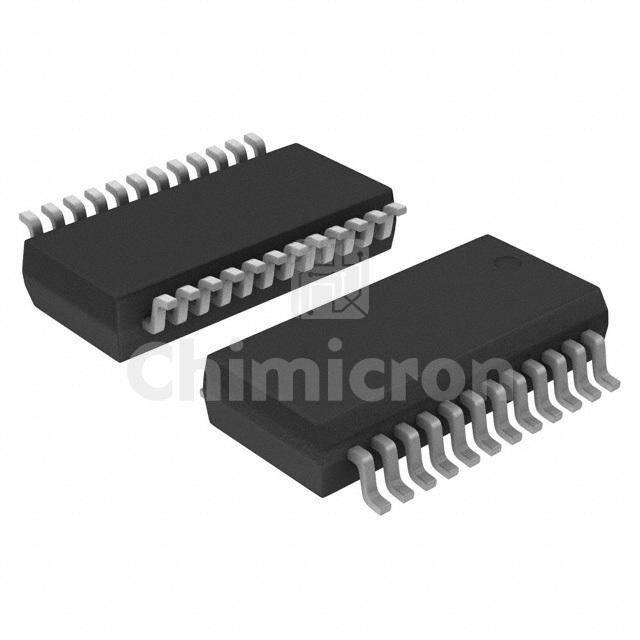

IR22141SS
Manufacturer: IR (Infineon Technologies)
Description: IC GATE DRVR HALF-BRIDGE 24SSOP
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IR22141SS IR (Infineon Technologies) at chimicron.com. We have 50000 pieces of IR22141SS in stock available now. Submit an inquiry for IR22141SS or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT
Voltage - Supply11.5V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)2A, 3A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)1200 V
Rise / Fall Time (Typ)24ns, 7ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case24-SSOP (0.209", 5.30mm Width)
Supplier Device Package24-SSOP
