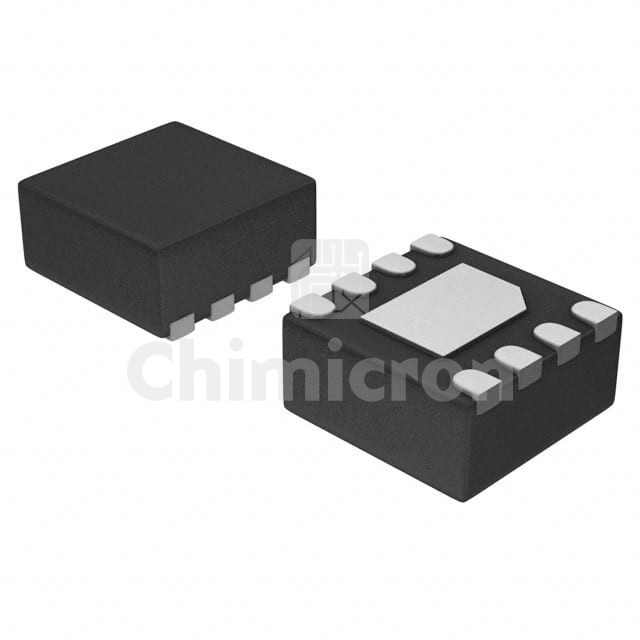

NCP81161MNTWG
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC GATE DRVR HALF-BRIDGE 8DFN
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:33853
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NCP81161MNTWG Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 33853 pieces of NCP81161MNTWG in stock available now. Submit an inquiry for NCP81161MNTWG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 13.2V
Logic Voltage - VIL, VIH1V, 2V
Current - Peak Output (Source, Sink)-
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)35 V
Rise / Fall Time (Typ)16ns, 11ns
Operating Temperature0°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-VFDFN Exposed Pad
Supplier Device Package8-DFN (2x2)
