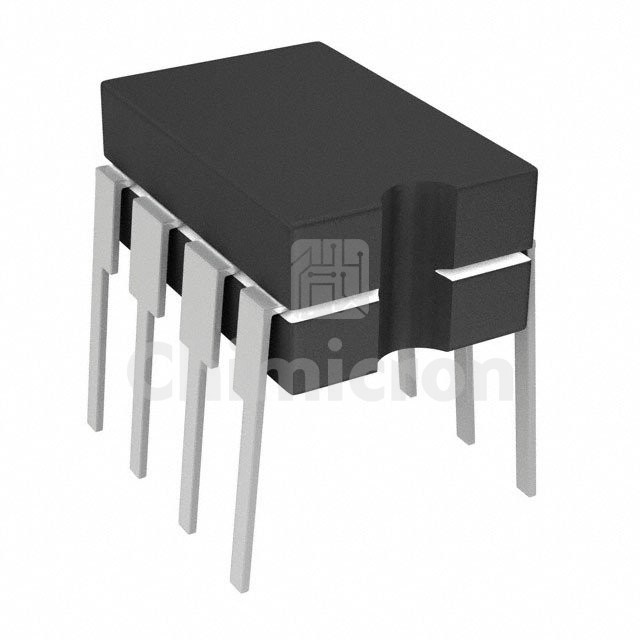

TC4421MJA
Manufacturer: Roving Networks / Microchip Technology
Description: IC GATE DRVR LOW-SIDE 8CERDIP
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:60000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TC4421MJA Roving Networks / Microchip Technology at chimicron.com. We have 60000 pieces of TC4421MJA in stock available now. Submit an inquiry for TC4421MJA or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)9A, 9A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)60ns, 60ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case8-CDIP (0.300", 7.62mm)
Supplier Device Package8-CERDIP
