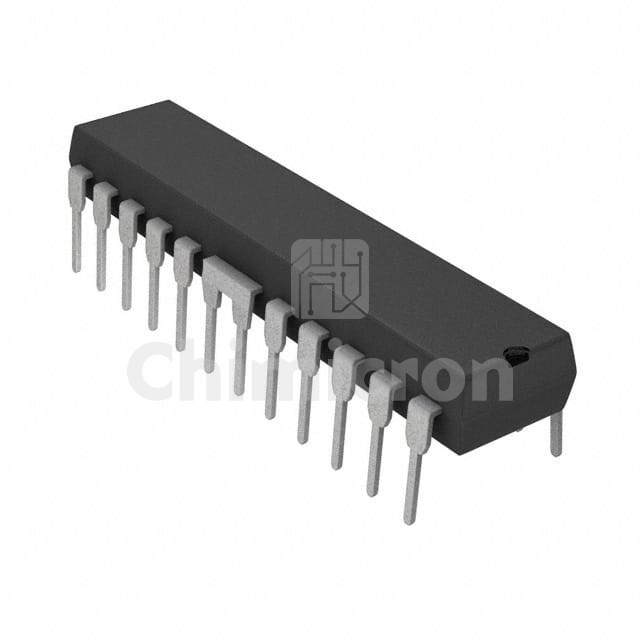

A3972SB
Manufacturer: Allegro MicroSystems
Description: IC MTR DRV BIPOLR 4.5-5.5V 24DIP
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: -
In Stock:20000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the A3972SB Allegro MicroSystems at chimicron.com. We have 20000 pieces of A3972SB in stock available now. Submit an inquiry for A3972SB or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (4)
InterfaceSerial
TechnologyDMOS
Step Resolution1 ~ 1/64
ApplicationsGeneral Purpose
Current - Output1.5A
Voltage - Supply4.5V ~ 5.5V
Voltage - Load15V ~ 50V
Operating Temperature-20°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case24-PowerDIP (0.300", 7.62mm)
Supplier Device Package24-DIP
