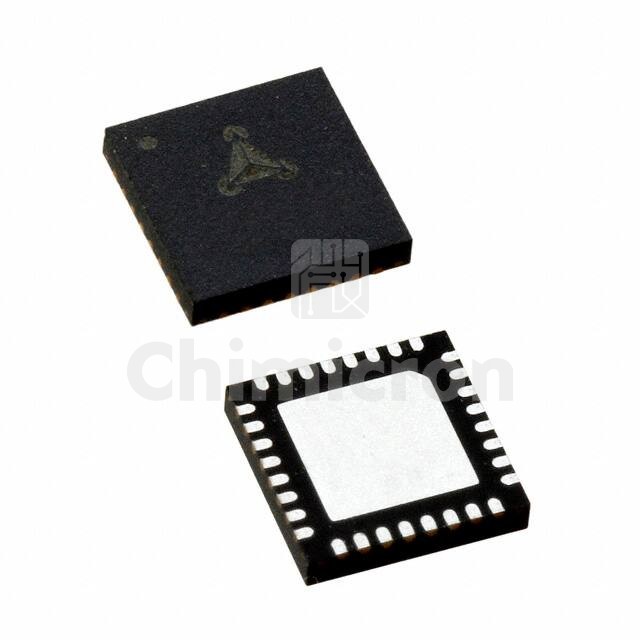

TMC223-LI
Manufacturer: TRINAMIC Motion Control GmbH
Description: IC MTR DRVR BIPOLAR 3.3-5V 32QFN
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: -
In Stock:200000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMC223-LI TRINAMIC Motion Control GmbH at chimicron.com. We have 200000 pieces of TMC223-LI in stock available now. Submit an inquiry for TMC223-LI or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTray
Part StatusObsolete
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (4)
InterfaceI²C
TechnologyPower MOSFET
Step Resolution1, 1/2, 1/4, 1/8, 1/16
ApplicationsGeneral Purpose
Current - Output570mA
Voltage - Supply3.3V ~ 5V
Voltage - Load8V ~ 29V
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN (7x7)
