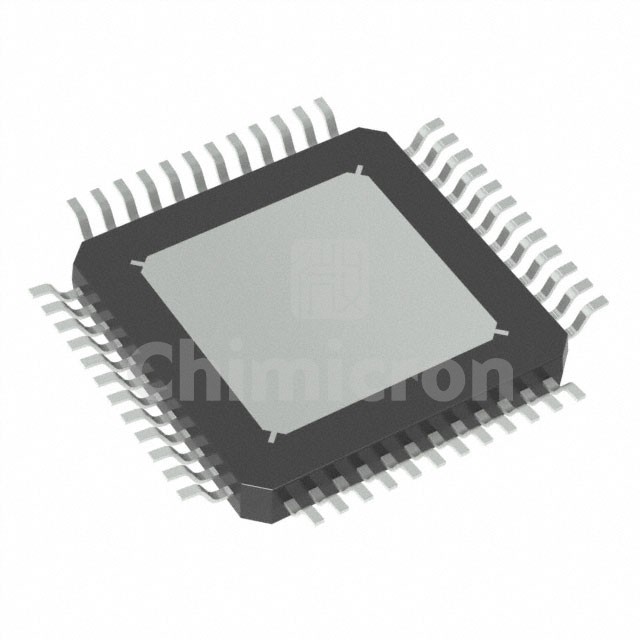

TMC5160-TA
Manufacturer: TRINAMIC Motion Control GmbH
Description: IC MTR DRVR BIPOLAR 8-60V 48TQFP
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: -
In Stock:5020
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMC5160-TA TRINAMIC Motion Control GmbH at chimicron.com. We have 5020 pieces of TMC5160-TA in stock available now. Submit an inquiry for TMC5160-TA or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTray
Part StatusObsolete
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (4)
InterfaceSPI, Step/Direction
TechnologyBCD MOS External Power MOSFETs
Step Resolution1 ~ 1/256
ApplicationsIndustrial
Current - Output20A
Voltage - Supply8V ~ 60V
Voltage - Load8V ~ 60V
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case48-TQFP Exposed Pad
Supplier Device Package48-TQFP-EP (7x7)
