L6258EX
Manufacturer: STMicroelectronics
Description: IC MOTOR DRIVER BIPLR 36POWERSO
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: -
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L6258EX STMicroelectronics at chimicron.com. We have 1000 pieces of L6258EX in stock available now. Submit an inquiry for L6258EX or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Motor Type - StepperBipolar
Motor Type - AC, DCBrushed DC
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (4)
InterfaceParallel
TechnologyDMOS
Step Resolution1, 1/2, 1/4, 1/8, 1/16
ApplicationsGeneral Purpose
Current - Output1.2A
Voltage - Supply4.75V ~ 5.25V
Voltage - Load12V ~ 40V
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount

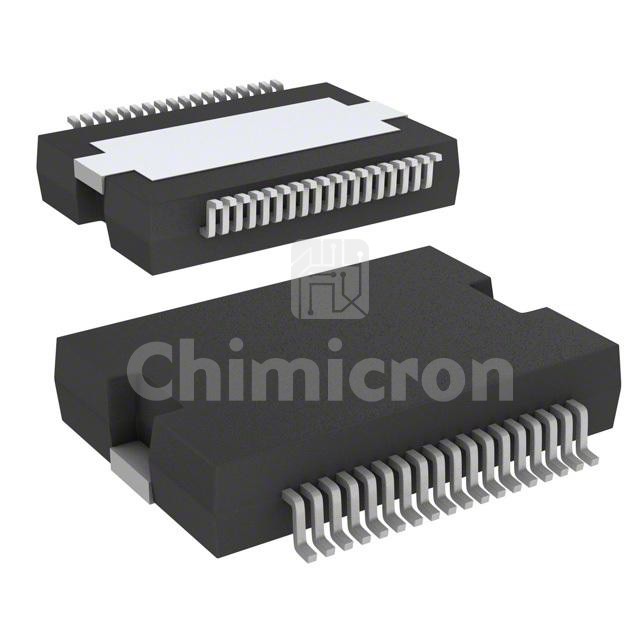

Package / CasePowerSO-36 Exposed Bottom Pad
Supplier Device PackagePowerSO-36
