RT8560GQW
Manufacturer: Richtek
Description: IC LED DRIVER RGLTR DIM 20WQFN
Category : Integrated Circuits
Family: PMIC - LED Drivers
Series: -
In Stock:18119
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the RT8560GQW Richtek at chimicron.com. We have 18119 pieces of RT8560GQW in stock available now. Submit an inquiry for RT8560GQW or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusDiscontinued at Digi-Key
TypeDC DC Regulator
TopologyStep-Up (Boost)
Internal Switch(s)Yes
Number of Outputs4
Voltage - Supply (Min)7V
Voltage - Supply (Max)40V
Voltage - Output60V
Current - Output / Channel30mA
Frequency1MHz
DimmingAnalog, PWM
ApplicationsBacklight
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount

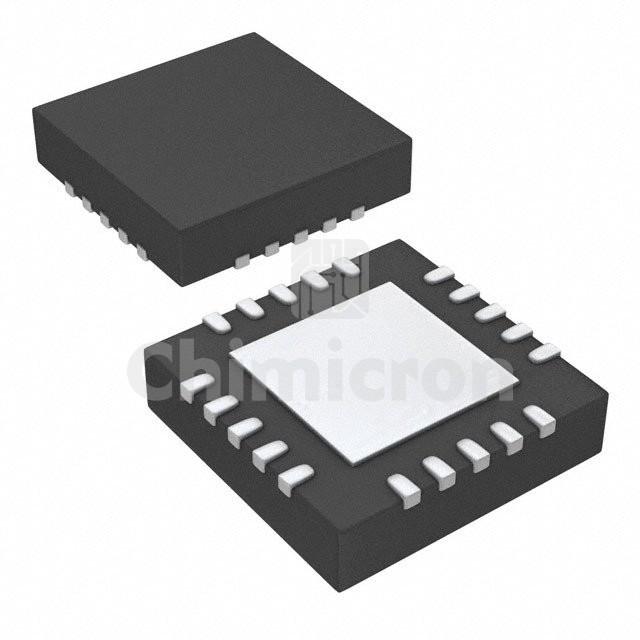

Package / Case20-WFQFN Exposed Pad
Supplier Device Package20-WQFN (4x4)
