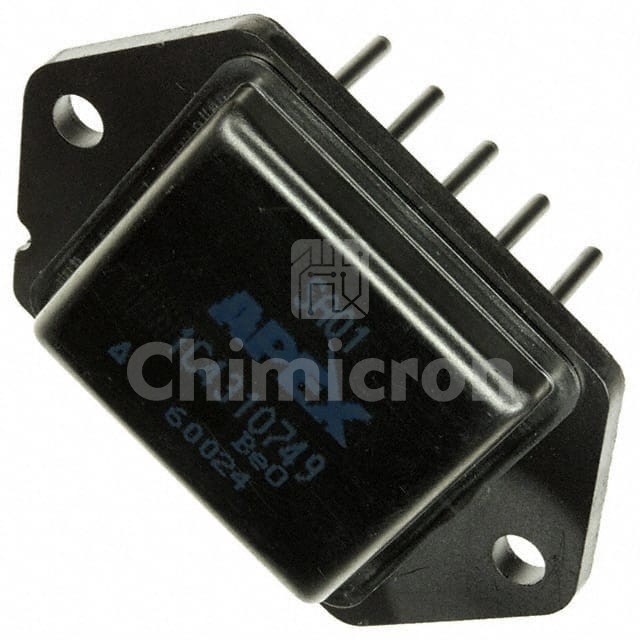

SA01
Manufacturer: Apex Microtechnology
Description: IC MOTOR DRIVER PAR 10POWERDIP
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: Apex Precision Power®
In Stock:3600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SA01 Apex Microtechnology at chimicron.com. We have 3600 pieces of SA01 in stock available now. Submit an inquiry for SA01 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesApex Precision Power®
PackageBulk
Part StatusDiscontinued at Digi-Key
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)250mOhm LS + HS
Current - Output / Channel20A
Current - Peak Output30A
Voltage - Supply16V ~ 100V
Voltage - Load16V ~ 100V
Operating Temperature-55°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature
Mounting TypeThrough Hole
Package / Case10-PowerDIP Module
Supplier Device Package10-PowerDip
