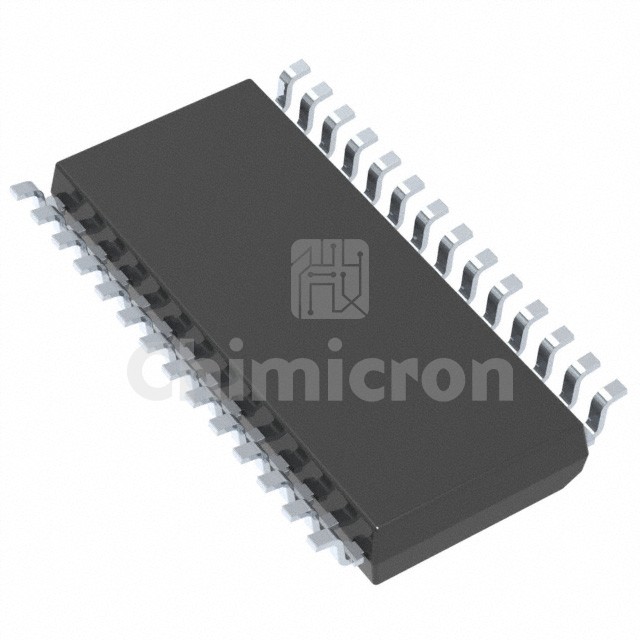

VN5770AKTR-E
Manufacturer: STMicroelectronics
Description: IC MOTOR DRIVER PAR 28SO
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: OMNIFET II™, VIPower™
In Stock:13736
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VN5770AKTR-E STMicroelectronics at chimicron.com. We have 13736 pieces of VN5770AKTR-E in stock available now. Submit an inquiry for VN5770AKTR-E or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOMNIFET II™, VIPower™
PackageTape & Reel (TR)
Part StatusObsolete
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose, Relays
InterfaceLogic
Load TypeInductive, Capacitive, Resistive
TechnologyPower MOSFET
Rds On (Typ)160mOhm
Current - Output / Channel8.5A
Current - Peak Output-
Voltage - Supply4.5V ~ 36V
Voltage - Load41V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, ESD, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SO
