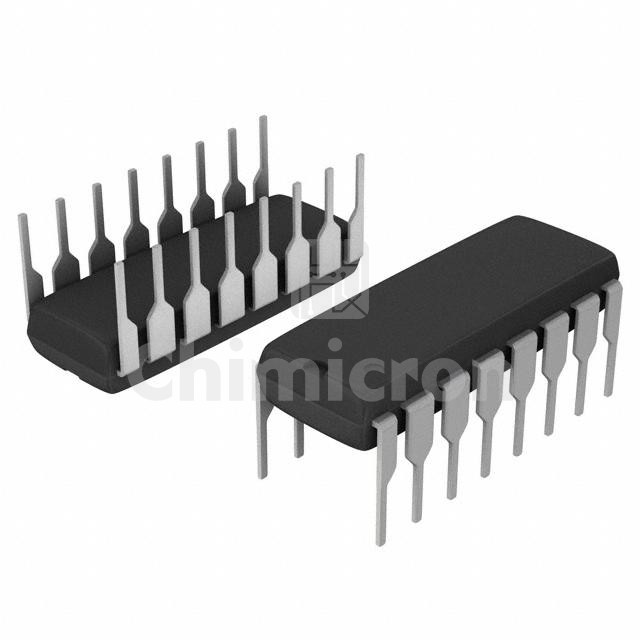

DG212BDJ
Manufacturer: Vishay / Siliconix
Description: IC SWITCH QUAD SPST 16DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG212BDJ Vishay / Siliconix at chimicron.com. We have 50000 pieces of DG212BDJ in stock available now. Submit an inquiry for DG212BDJ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)85Ohm
Channel-to-Channel Matching (ΔRon)2Ohm
Voltage - Supply, Single (V+)4.5V ~ 25V
Voltage - Supply, Dual (V±)±4.5V ~ 22V
Switch Time (Ton, Toff) (Max)300ns, 200ns
-3db Bandwidth-
Charge Injection1pC
Channel Capacitance (CS(off), CD(off))5pF, 5pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-95dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-DIP
