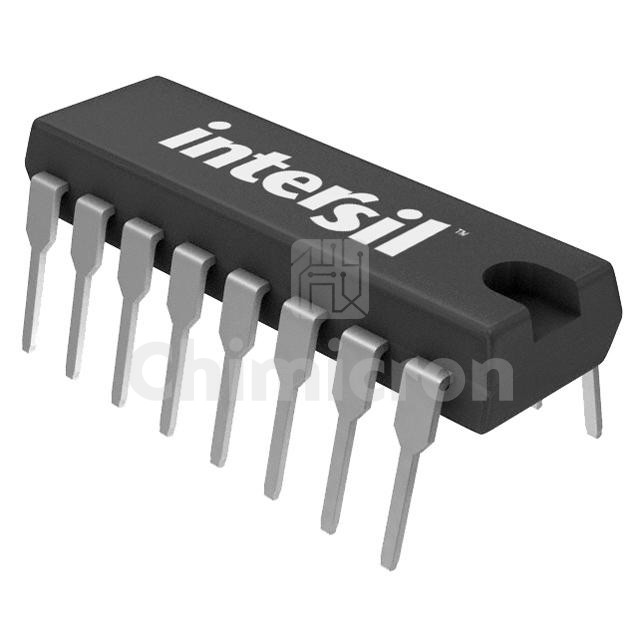

DG508ACJZ
Manufacturer: Intersil (Renesas Electronics America)
Description: IC MULTIPLEXER 8X1 16DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG508ACJZ Intersil (Renesas Electronics America) at chimicron.com. We have 1000 pieces of DG508ACJZ in stock available now. Submit an inquiry for DG508ACJZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch Circuit-
Multiplexer/Demultiplexer Circuit8:1
Number of Circuits1
On-State Resistance (Max)400Ohm
Channel-to-Channel Matching (ΔRon)24Ohm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±15V
Switch Time (Ton, Toff) (Max)1.5µs, 1µs
-3db Bandwidth-
Charge Injection4pC
Channel Capacitance (CS(off), CD(off))5pF, 25pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-PDIP
