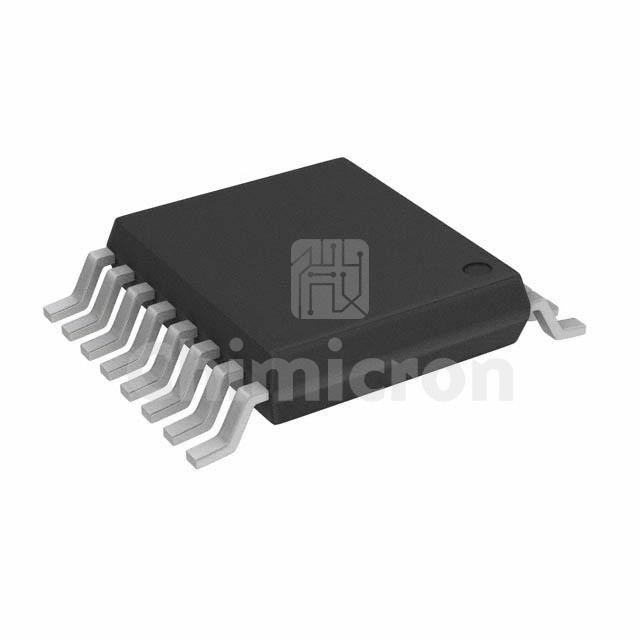

MAX313CUE
Manufacturer: Maxim Integrated
Description: IC SWITCH QUAD SPST 16TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:33300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX313CUE Maxim Integrated at chimicron.com. We have 33300 pieces of MAX313CUE in stock available now. Submit an inquiry for MAX313CUE or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)10Ohm
Channel-to-Channel Matching (ΔRon)300mOhm
Voltage - Supply, Single (V+)4.5V ~ 30V
Voltage - Supply, Dual (V±)±4.5V ~ 20V
Switch Time (Ton, Toff) (Max)225ns, 185ns
-3db Bandwidth-
Charge Injection20pC
Channel Capacitance (CS(off), CD(off))15pF, 15pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-85dB @ 1MHz
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
