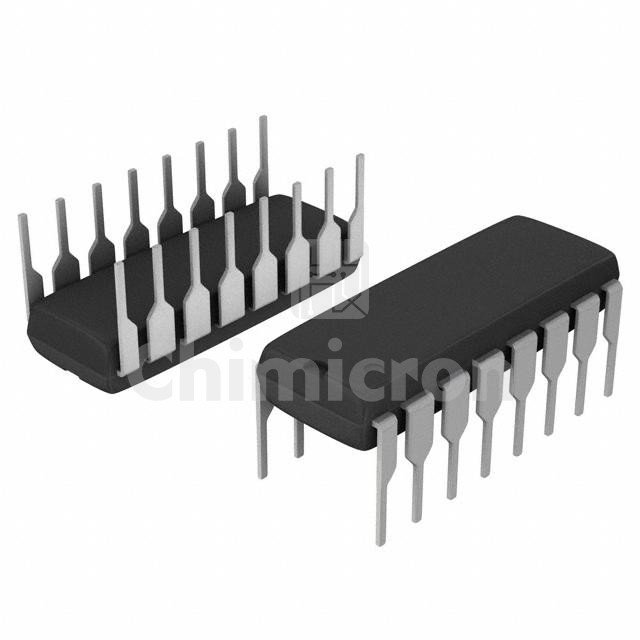

DG271BCJ
DG271BCJ

Manufacturer: Vishay / Siliconix

Description: IC SWITCH QUAD SPST 16DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:5000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG271BCJ Vishay / Siliconix at chimicron.com. We have 5000 pieces of DG271BCJ in stock available now. Submit an inquiry for DG271BCJ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch CircuitSPST - NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)50Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±15V
Switch Time (Ton, Toff) (Max)65ns, 65ns
-3db Bandwidth-
Charge Injection-5pC
Channel Capacitance (CS(off), CD(off))8pF, 8pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-100dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-PDIP
