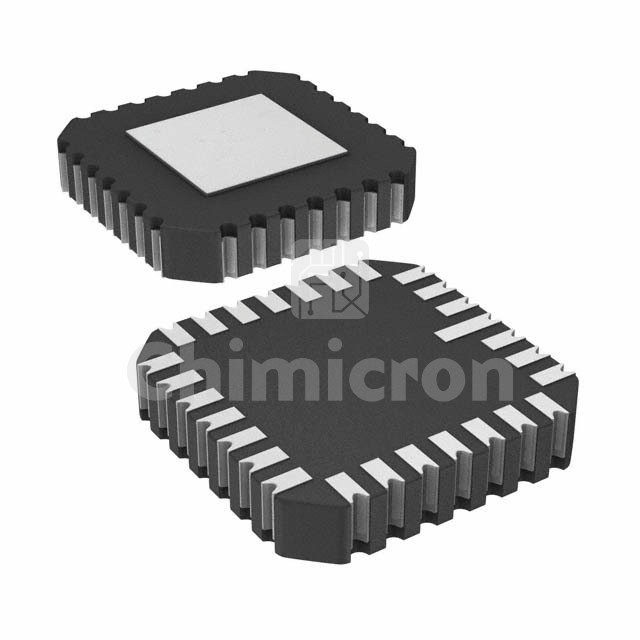

ADG507ATE
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER DUAL 8X1 28CLCC
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG507ATE Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 1000 pieces of ADG507ATE in stock available now. Submit an inquiry for ADG507ATE or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch Circuit-
Multiplexer/Demultiplexer Circuit8:1
Number of Circuits2
On-State Resistance (Max)300Ohm
Channel-to-Channel Matching (ΔRon)15Ohm
Voltage - Supply, Single (V+)10.8V ~ 16.5V
Voltage - Supply, Dual (V±)±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max)300ns, 300ns
-3db Bandwidth-
Charge Injection4pC
Channel Capacitance (CS(off), CD(off))5pF, 22pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case28-LCC
Supplier Device Package28-LCC (11.43x11.43)
