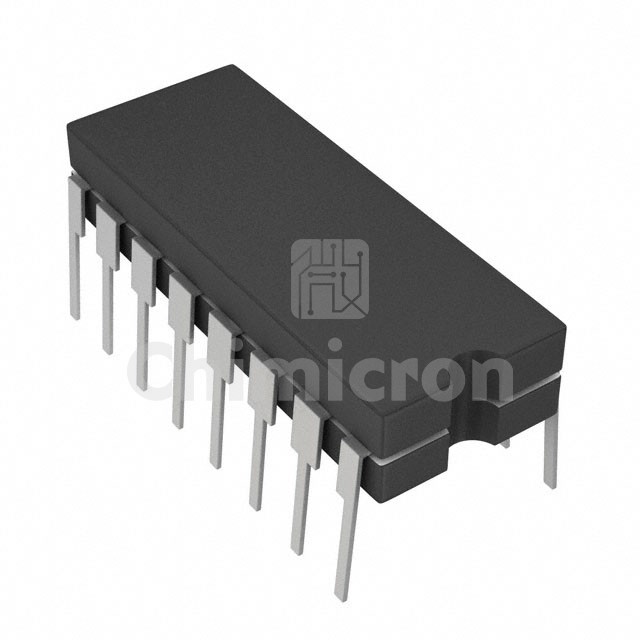

DG509AAK/883B
Manufacturer: Maxim Integrated
Description: IC MUX 8:2 400 OHM 16DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG509AAK/883B Maxim Integrated at chimicron.com. We have 2500 pieces of DG509AAK/883B in stock available now. Submit an inquiry for DG509AAK/883B or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)400Ohm
Channel-to-Channel Matching (ΔRon)24Ohm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)1µs, 700ns
-3db Bandwidth-
Charge Injection-
Channel Capacitance (CS(off), CD(off))5pF, 12pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CDIP
