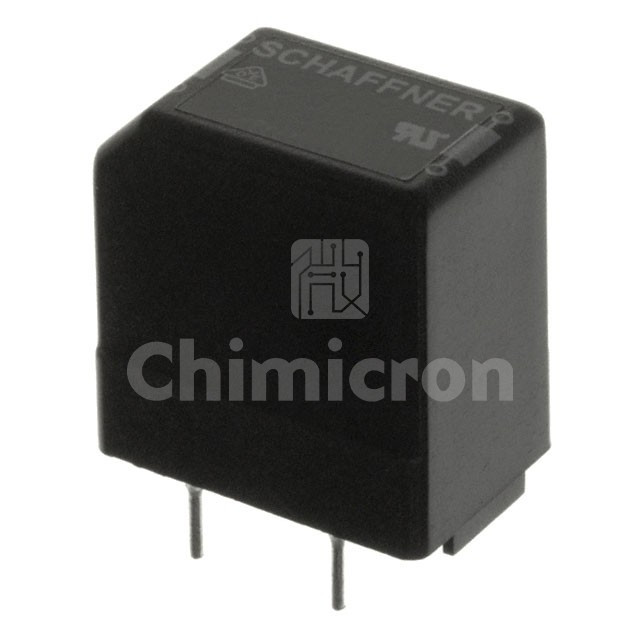

RN214-4-02
RN214-4-02

Manufacturer: Schaffner EMC, Inc.

Description: CMC 1.5MH 4A 2LN TH
Category : Filters
Family: Common Mode Chokes
Series: RN
In Stock:5000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the RN214-4-02 Schaffner EMC, Inc. at chimicron.com. We have 5000 pieces of RN214-4-02 in stock available now. Submit an inquiry for RN214-4-02 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesRN
PackageTray
Part StatusObsolete
Filter TypePower Line
Number of Lines2
Impedance @ Frequency-
Inductance @ Frequency1.5 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency-
Current Rating (Max)4A (Typ)
DC Resistance (DCR) (Max)35mOhm (Typ)
Voltage Rating - DC-
Voltage Rating - AC250V
Operating Temperature-40°C ~ 125°C
Ratings-
Approval AgencyUR, VDE
Features-
Mounting TypeThrough Hole
Size / Dimension0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max)0.996" (25.30mm)
Package / CaseVertical, 4 PC Pin
