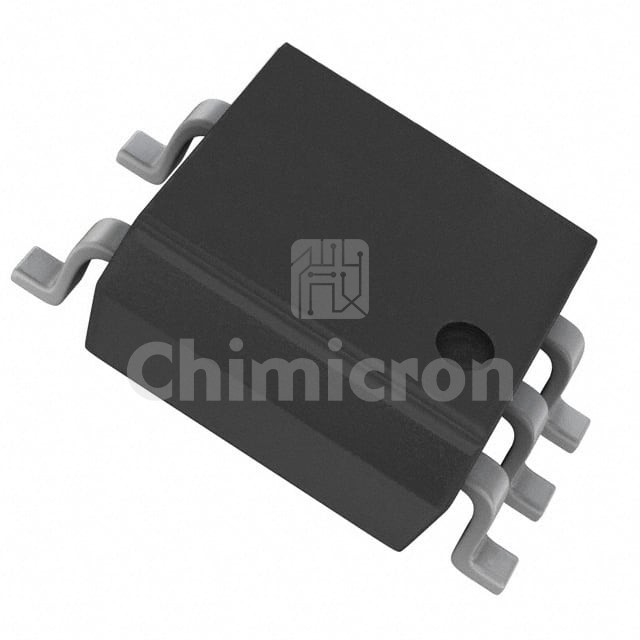

PS9117-F3-A
Manufacturer: CEL (California Eastern Laboratories)
Description: OPTOISO 3.75KV OPN COLLECTOR 5SO
Category : Isolators
Family: Optoisolators - Logic Output
Series: NEPOC
In Stock:14629
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PS9117-F3-A CEL (California Eastern Laboratories) at chimicron.com. We have 14629 pieces of PS9117-F3-A in stock available now. Submit an inquiry for PS9117-F3-A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNEPOC
PackageTape & Reel (TR)
Part StatusObsolete
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)15kV/µs
Input TypeDC
Output TypeOpen Collector
Current - Output / Channel25 mA
Data Rate10Mbps
Propagation Delay tpLH / tpHL (Max)75ns, 75ns
Rise / Fall Time (Typ)20ns, 5ns
Voltage - Forward (Vf) (Typ)1.65V
Current - DC Forward (If) (Max)30mA
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package5-SO
