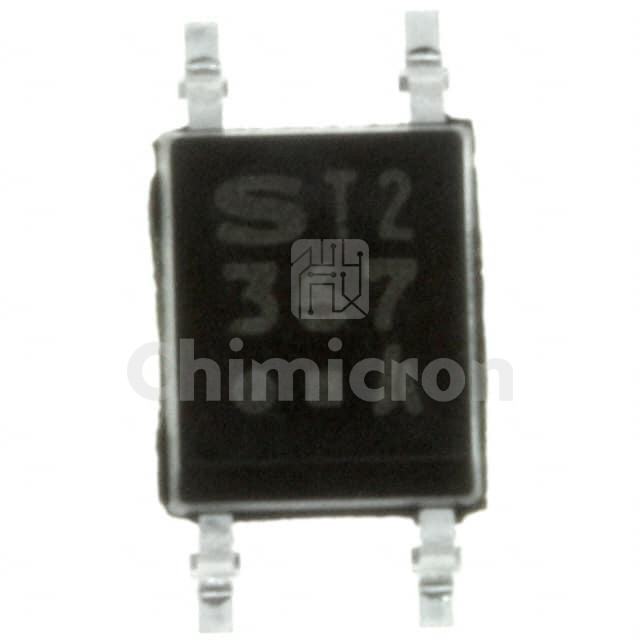

PC367N1J000F
Manufacturer: Sharp Microelectronics
Description: OPTOISO 3.75KV TRANS 4-MINI-FLAT
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:400000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PC367N1J000F Sharp Microelectronics at chimicron.com. We have 400000 pieces of PC367N1J000F in stock available now. Submit an inquiry for PC367N1J000F or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)150% @ 500µA
Current Transfer Ratio (Max)300% @ 500µA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)10 mA
Vce Saturation (Max)200mV
Operating Temperature-30°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-Mini-Flat
