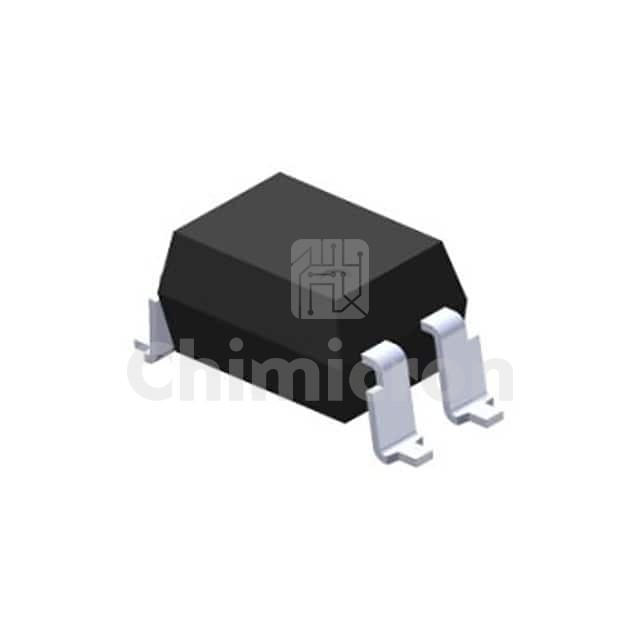

EL817S1(C)(TA)-V
Manufacturer: Everlight Electronics
Description: OPTOISOLTR 5KV TRANSISTOR 4-SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:1000000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the EL817S1(C)(TA)-V Everlight Electronics at chimicron.com. We have 1000000 pieces of EL817S1(C)(TA)-V in stock available now. Submit an inquiry for EL817S1(C)(TA)-V or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusDiscontinued at Digi-Key
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)200% @ 5mA
Current Transfer Ratio (Max)400% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)35V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)200mV
Operating Temperature-55°C ~ 110°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SMD
